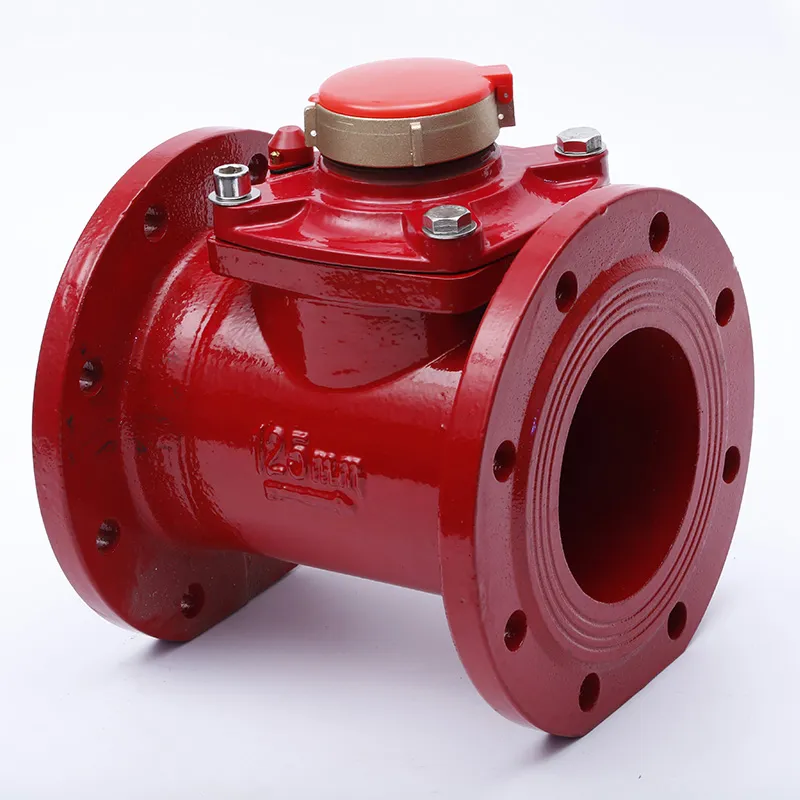

What is a Horizontal Woltman Type Hot Water Meter

For industries and commercial facilities that rely on hot water, accurately measuring water flow is crucial. The Horizontal Woltman Type Hot Water Meter is specifically designed for such applications, offering precision and reliability in high-temperature environments. In this post, we'll explain what a Woltman water meter is, how it works, and why it’s often the preferred choice for hot water measurement in industrial settings.

What is a Woltman Water Meter?

A Woltman water meter is a mechanical flow meter designed primarily for high-volume water flow measurement. It’s named after the inventor, Albert Woltman, who developed this meter to handle larger volumes and provide greater accuracy than typical residential meters. The “horizontal” designation in these meters refers to the horizontal orientation of the internal turbine, which is optimized to measure water flowing in a single direction.

How Does a Horizontal Woltman Type Hot Water Meter Work?

1. Turbine Operation: Inside the meter, a turbine is positioned horizontally in the flow path. When water flows through the meter, it rotates the turbine. The rotation speed of the turbine directly correlates to the flow rate, which the meter registers and displays.

2. Temperature Resistance: Unlike standard Woltman meters, which are designed for cold water, the hot water variant is built with materials and components capable of withstanding high temperatures—typically up to 130°C (266°F) or more. This makes it ideal for hot water systems in industrial plants, heating networks, and other high-temperature applications.

3. Accuracy and Range: Horizontal Woltman meters provide high accuracy, even for low flow rates, and are available in sizes to handle medium to very high flow rates. This is achieved through the precise design of the turbine and the sensitive internal components that record the flow data.

Applications of Horizontal Woltman Type Hot Water Meters

These meters are widely used in industries and facilities where monitoring hot water usage is essential. Common applications include:

- Industrial Hot Water Systems: Manufacturing facilities, where hot water is used for various production processes, rely on these meters for accurate measurement.

- District Heating Systems: These networks supply hot water for heating purposes to residential and commercial buildings. Horizontal Woltman hot water meters are crucial for measuring and billing based on usage.

- Boiler Rooms: In large buildings, boiler rooms generate hot water and heat, making it essential to monitor the output for both operational efficiency and cost management.

Advantages of Horizontal Woltman Type Hot Water Meters

1. High Durability: Made with corrosion-resistant materials, these meters are built to withstand hot water temperatures and high pressure, ensuring a long service life.

2. Precision and Accuracy: Horizontal Woltman meters provide highly accurate readings even in challenging conditions. They are calibrated for minimal error, making them suitable for both small and large flow rates.

3. Low Maintenance: Designed for durability, these meters require minimal maintenance, reducing the cost of ownership.

4. Easy Installation: The horizontal design makes these meters easy to install in confined spaces, and their robust construction ensures they operate efficiently even in demanding conditions.

How to Choose the Right Woltman Type Hot Water Meter

When selecting a horizontal Woltman hot water meter, consider the following:

- Flow Rate: Choose a meter that can handle your required flow rate without compromising accuracy.

- Temperature Range: Ensure the meter can withstand the specific temperature of the hot water in your system.

- Pipe Size Compatibility: Make sure the meter size matches the pipe diameter for optimal flow measurement.

Horizontal Woltman type hot water meters are ideal for industrial and commercial applications that demand accuracy, durability, and efficiency. With their advanced design and high-temperature resistance, these meters can help businesses effectively monitor water usage, manage energy costs, and ensure efficient operations.
