Unveiling the Anatomy of a Manual Video Measuring Machine: Exploring Its Components and Features

2024-03-20

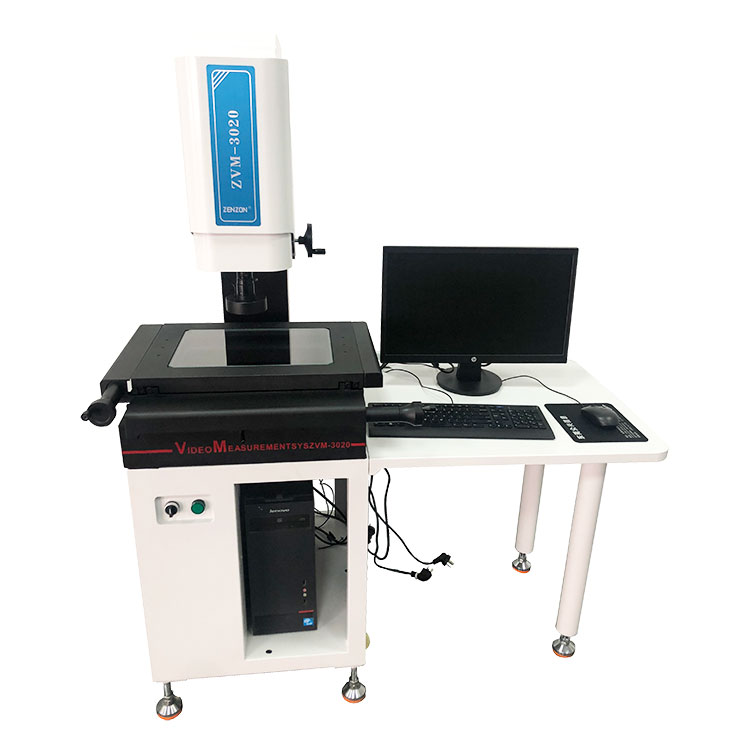

In the realm of precision measurement, manual video measuring machines stand as stalwarts of accuracy and efficiency. These sophisticated tools leverage advanced imaging technology to capture precise dimensional data, facilitating quality control, reverse engineering, and prototyping across various industries. But what exactly are the basic components and features that make up a manual video measuring machine? Let's embark on a journey to unveil the anatomy of this indispensable tool.

1. Camera System: At the heart of every manual video measuring machine lies a high-resolution camera system. This system serves as the eyes of the machine, capturing detailed images of the object being measured with exceptional clarity and precision. Equipped with advanced optics and lighting mechanisms, the camera system ensures optimal image quality, allowing operators to visualize surface features, contours, and dimensions with ease.

2. Precision Stage: Complementing the camera system is a precision stage, where the object being measured is securely positioned for analysis. The precision stage features micrometer-driven axes that enable precise movement and positioning of the object in relation to the camera system. This allows operators to capture measurements from multiple angles and viewpoints, ensuring comprehensive dimensional data acquisition.

3. Software Interface: A robust software interface serves as the brain of the manual video measuring machine, facilitating data acquisition, analysis, and reporting. The software interface is equipped with powerful measurement tools and algorithms that enable operators to extract dimensional data from captured images accurately. Additionally, the software interface may feature user-friendly controls and intuitive navigation, enhancing the overall user experience.

4. Illumination System: Lighting plays a critical role in ensuring optimal image quality and measurement accuracy in a manual video measuring machine. An integrated illumination system provides uniform and adjustable lighting conditions, minimizing shadows and reflections that may obscure surface details. This allows operators to capture clear and consistent images, even when measuring objects with complex geometries or reflective surfaces.

5. Measurement Tools: Manual video measuring machines are equipped with a comprehensive suite of measurement tools and functions to analyze captured images and extract dimensional data. These measurement tools may include point-to-point measurements, line measurements, circle measurements, and area measurements, among others. Operators can select the appropriate measurement tools based on the specific features and dimensions of the object being measured, ensuring accurate and reliable results.

6. Magnification Options: To accommodate a wide range of objects and measurement requirements, manual video measuring machines often feature adjustable magnification options. Operators can select the desired magnification level to capture detailed images and measurements of both small and large objects. This flexibility enables manual video measuring machines to handle diverse measurement tasks with precision and versatility.

7. Data Output and Reporting: Once measurements are captured and analyzed, manual video measuring machines offer various options for data output and reporting. Operators can generate detailed measurement reports, including dimensional data, graphical representations, and statistical analyses. Additionally, data output options may include integration with external software systems or compatibility with industry-standard formats for seamless data sharing and collaboration.

In conclusion, the basic components and features of a manual video measuring machine form a cohesive system designed to deliver precise and reliable dimensional measurements. From the camera system and precision stage to the software interface and measurement tools, each component plays a vital role in ensuring accuracy, efficiency, and usability. By harnessing the power of advanced imaging technology and intuitive software interfaces, manual video measuring machines empower operators to unlock new levels of productivity and quality in their measurement processes.
