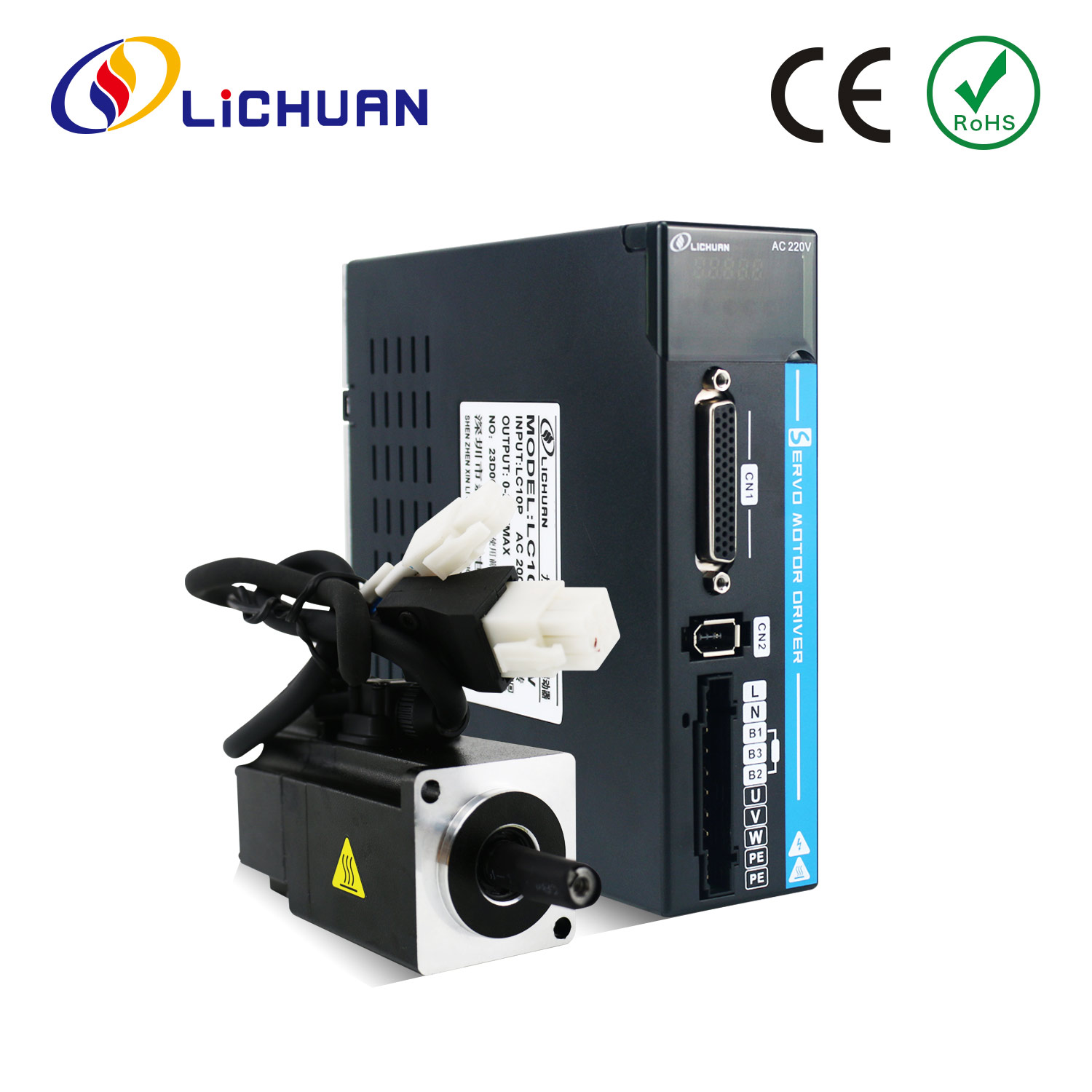

Unpacking the Essentials: The Main Components of an AC Servo Motor

2024-05-20

AC servo motors are indispensable in various high-precision applications, from robotics and CNC machines to aerospace and automation. Understanding the main components of an AC servo motor is crucial for leveraging its capabilities to achieve precise control of motion, speed, and position. In this blog, we will delve into the key components that make up an AC servo motor and how they contribute to its overall function.

The Core Components of an AC Servo Motor

1. Stator

2. Rotor

3. Feedback Device (Encoder/Resolver)

4. Drive (Servo Drive or Amplifier)

5. Controller

6. Power Supply

1. Stator

The stator is the stationary part of the AC servo motor. It consists of a core made from laminated steel sheets to minimize energy losses due to eddy currents. The stator has windings, typically made of copper, which are distributed evenly around its circumference. When AC power is supplied to these windings, it generates a rotating magnetic field. This magnetic field is crucial for inducing motion in the rotor.

2. Rotor

The rotor is the rotating part of the motor. It is located inside the stator and is typically made of a solid steel shaft with windings or permanent magnets attached. In an induction AC servo motor, the rotor has windings, and the rotating magnetic field from the stator induces a current in these windings, generating a magnetic field that interacts with the stator’s field to produce torque. In a synchronous AC servo motor, the rotor is equipped with permanent magnets that directly interact with the rotating magnetic field of the stator, resulting in precise control of rotational speed.

3. Feedback Device (Encoder/Resolver)

The feedback device is a critical component that provides real-time data on the motor’s position, speed, and sometimes acceleration. The most common types of feedback devices are encoders and resolvers:

- Encoder: This digital device converts the mechanical position of the rotor into electrical signals that the controller can interpret. Encoders are known for their high accuracy and are available in various types, such as incremental and absolute encoders.

- Resolver: This analog device functions similarly to an encoder but uses a different principle. Resolvers are highly robust and can operate in harsh environments, providing reliable feedback for the control system.

4. Drive (Servo Drive or Amplifier)

The drive, also known as a servo drive or amplifier, is responsible for supplying the appropriate voltage and current to the motor based on control signals from the controller. The drive converts these signals into electrical power that the motor can use to perform the desired motion. It also processes feedback from the encoder or resolver to adjust the power supply, ensuring precise control over the motor’s performance.

5. Controller

The controller is the brain of the AC servo motor system. It processes input commands from the user or a higher-level system and translates them into precise control signals for the drive. The controller continuously compares the feedback data from the encoder or resolver with the desired position or speed and adjusts the control signals accordingly. This closed-loop control system ensures accurate and stable motor operation.

6. Power Supply

The power supply provides the necessary electrical power to the drive and, subsequently, to the motor. It ensures that the motor receives consistent and adequate power to perform its tasks. The power supply must be matched to the motor’s specifications to avoid underperformance or damage.

Conclusion

The main components of an AC servo motor – the stator, rotor, feedback device, drive, controller, and power supply – work together harmoniously to deliver precise and reliable motion control. Each component plays a vital role in the system, contributing to the overall efficiency, accuracy, and performance of the motor. Understanding these components is essential for anyone looking to harness the full potential of AC servo motors in their applications, ensuring optimal performance and longevity.
