Understanding the Ingenious Mechanism of Printer Ribbons

2024-03-12

Printer ribbons serve as vital components in certain types of printers, contributing to the generation of printed documents with clarity and precision. Behind their seemingly simple appearance lies a sophisticated working principle that enables them to produce consistent and reliable prints. In this blog post, we will delve into the fascinating working principle behind printer ribbons, shedding light on the mechanics that drive their functionality.

The Basics of Printer Ribbons

Before delving into the working principle, let's first establish a basic understanding of what a printer ribbon is. A printer ribbon is a slender strip, typically made of materials like nylon or fabric, coated with ink or pigment. It is used in printers such as dot matrix and line matrix printers, where the ribbon is engaged with a print head to transfer ink onto the printing surface.

The Working Principle

The working principle behind printer ribbons can be summarized in a few key steps:

1. Impact Printing Mechanism: Printer ribbons are primarily used in impact printers, where characters or images are formed by striking the ribbon against the paper. In dot matrix printers, for example, the print head contains a series of pins that are driven forward to strike the ribbon and paper, creating dots that form characters or images.

2. Ink Transfer: When the print head strikes the ribbon, it transfers ink from the ribbon onto the paper, leaving behind marks that correspond to the desired characters or images. The ink on the ribbon is precisely positioned to align with the characters on the print head, ensuring accurate printing.

3. Character Formation: As the print head moves across the paper, it engages with the ribbon multiple times, forming characters or images by selectively depositing ink onto the printing surface. The ribbon advances incrementally to ensure that fresh ink is available for each printing cycle.

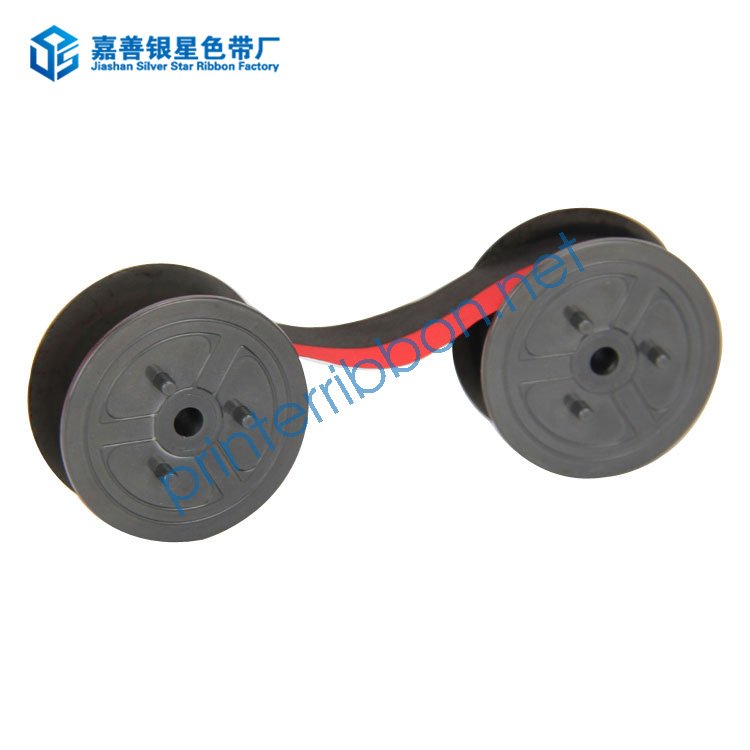

4. Ribbon Advancement: The ribbon is wound onto spools within the printer, with one spool feeding the ribbon to the print head and another spool receiving the used ribbon. As printing progresses, the used ribbon is wound onto the receiving spool, ensuring efficient utilization of the ribbon's surface area.

Key Considerations

Several factors contribute to the effectiveness and efficiency of printer ribbons:

- Ink Composition: The composition of the ink or pigment on the ribbon determines its adhesion properties, drying time, and resistance to fading or smudging.

- Ribbon Tension: Proper tension control is essential to ensure smooth ribbon movement and prevent ribbon breakage or slippage during printing.

- Print Head Alignment: Precise alignment between the print head and the ribbon is crucial to achieving accurate and consistent prints.

Conclusion

Printer ribbons operate on a simple yet ingenious principle, leveraging mechanical impact to transfer ink onto the printing surface. Through careful engineering and design, printer ribbons enable the creation of high-quality prints with remarkable clarity and precision. By understanding the working principle behind printer ribbons, users can appreciate the intricacies of this essential printing component and optimize its performance for various printing tasks.
