The Manufacturing Process and Quality Control of Stainless Steel Wind Power Flanges

2024-07-04

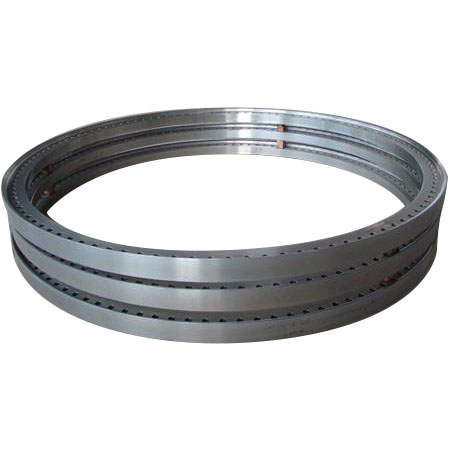

Stainless steel wind power flanges are critical components in the construction and operation of wind turbines. They ensure the structural integrity and durability of the turbine by providing robust connections between various sections. The manufacturing process of these flanges is intricate and requires stringent quality control measures to ensure their reliability and performance. In this blog, we will explore the detailed manufacturing process of stainless steel wind power flanges and the quality control measures involved.


Manufacturing Process of Stainless Steel Wind Power Flanges

1. Material Selection

The manufacturing process begins with the selection of the appropriate stainless steel grade. Common grades used for wind power flanges include 304, 316, and duplex stainless steels, chosen for their strength, durability, and corrosion resistance. The selected material must meet specific standards and certifications to ensure it can withstand the harsh operational environments of wind turbines.


2. Cutting and Shaping

Once the stainless steel material is selected, it is cut into the required dimensions. This process typically involves using high-precision cutting tools such as laser cutters, plasma cutters, or water jet cutters. The cutting process must be precise to ensure that the flange dimensions are accurate and meet the design specifications.


3. Forging

Forging is a critical step in the manufacturing of wind power flanges. In this process, the cut stainless steel pieces are heated to a high temperature and then shaped into the desired form using a forging press or hammer. Forging enhances the mechanical properties of the stainless steel, such as strength and toughness, by refining its grain structure.


4. Heat Treatment

After forging, the flanges undergo heat treatment to further enhance their mechanical properties. Heat treatment processes such as annealing, quenching, and tempering are used to relieve internal stresses, improve toughness, and increase hardness. The specific heat treatment process depends on the stainless steel grade and the required properties of the flange.


5. Machining

Machining is performed to achieve the final dimensions and surface finish of the flanges. CNC (Computer Numerical Control) machines are commonly used for this purpose, ensuring high precision and consistency. During machining, various operations such as turning, drilling, and milling are carried out to create bolt holes, flanges faces, and other required features.


Quality Control Measures


1. Material Inspection

Quality control begins with the inspection of raw materials. The stainless steel must be tested for its chemical composition, mechanical properties, and other relevant parameters to ensure it meets the required standards. Certificates of compliance are often provided by the material suppliers.


2. Dimensional Inspection

During and after the machining process, dimensional inspections are carried out to verify that the flanges meet the specified dimensions and tolerances. Precision measuring instruments such as calipers, micrometers, and coordinate measuring machines (CMM) are used for this purpose.


3. Non-Destructive Testing (NDT)

Non-destructive testing methods such as ultrasonic testing, magnetic particle testing, and dye penetrant testing are used to detect any internal or surface defects in the flanges. These tests help identify issues such as cracks, voids, and inclusions that could compromise the integrity of the flanges.


4. Mechanical Testing

Mechanical testing is performed to ensure that the flanges meet the required strength and toughness specifications. Tests such as tensile testing, hardness testing, and impact testing are conducted to evaluate the mechanical properties of the flanges.


5. Corrosion Testing

To verify the corrosion resistance of the stainless steel flanges, corrosion testing methods such as salt spray testing and cyclic corrosion testing are employed. These tests simulate the environmental conditions the flanges will be exposed to and assess their ability to resist corrosion.


Conclusion

The manufacturing process of stainless steel wind power flanges involves several precise and controlled steps, from material selection and forging to machining and surface finishing. Each step is accompanied by rigorous quality control measures to ensure that the flanges meet the highest standards of strength, durability, and corrosion resistance. These stringent processes are essential for producing reliable and high-performance components that play a critical role in the efficient and safe operation of wind turbines.
