The introduction of Solid Wall Pipe Extrusion Line

Introduction of Solid Wall Pipe Extrusion Line

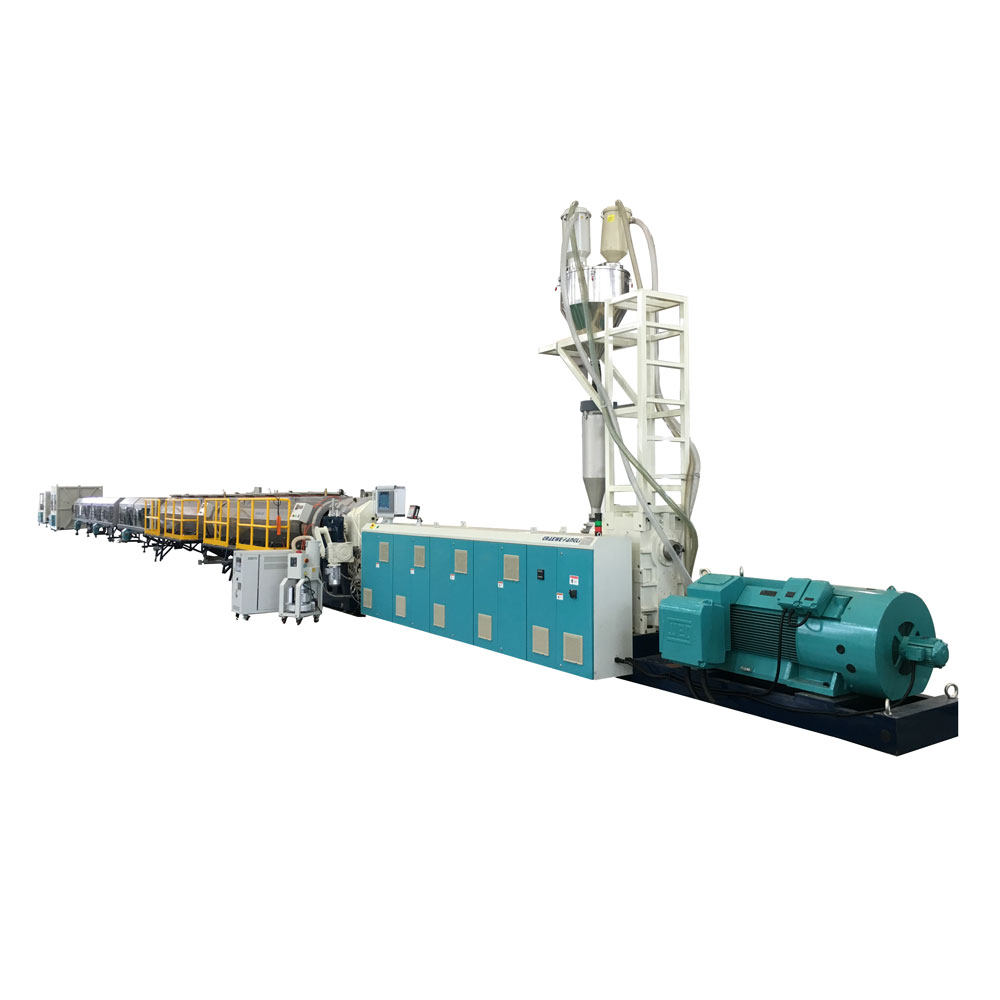

A Solid Wall Pipe Extrusion Line is a specialized manufacturing system used to produce solid wall plastic pipes, typically made from materials like PVC (Polyvinyl Chloride), PE (Polyethylene), or PP (Polypropylene). These pipes are widely used in applications such as water supply, gas distribution, sewage systems, and industrial piping.

Key Components:

Extruder

The heart of the extrusion line, it melts and conveys raw plastic materials through a screw and barrel system.

Die Head and Mould

Shapes the molten plastic into a cylindrical pipe form.

Vacuum Calibration Tank

Cools and sets the shape of the pipe using vacuum suction and water spraying.

Cooling Tank

Further cools the pipe to ensure dimensional stability.

Haul-off Unit

Pulls the pipe continuously through the extrusion line at a consistent speed.

Cutter

Automatically cuts the pipe into desired lengths.

Stacker or Belling Machine (optional)

Collects and aligns the finished pipes or forms socket ends.

Features:

High production efficiency

Uniform wall thickness and smooth surface finish

Wide diameter range capabilities

PLC automation for easy control and monitoring

Energy-efficient and durable construction

Applications:

Drinking water and drainage systems

Agricultural irrigation

Gas pipelines

Cable protection

If you are interested in our products or have any questions, please feel free to contact us.
