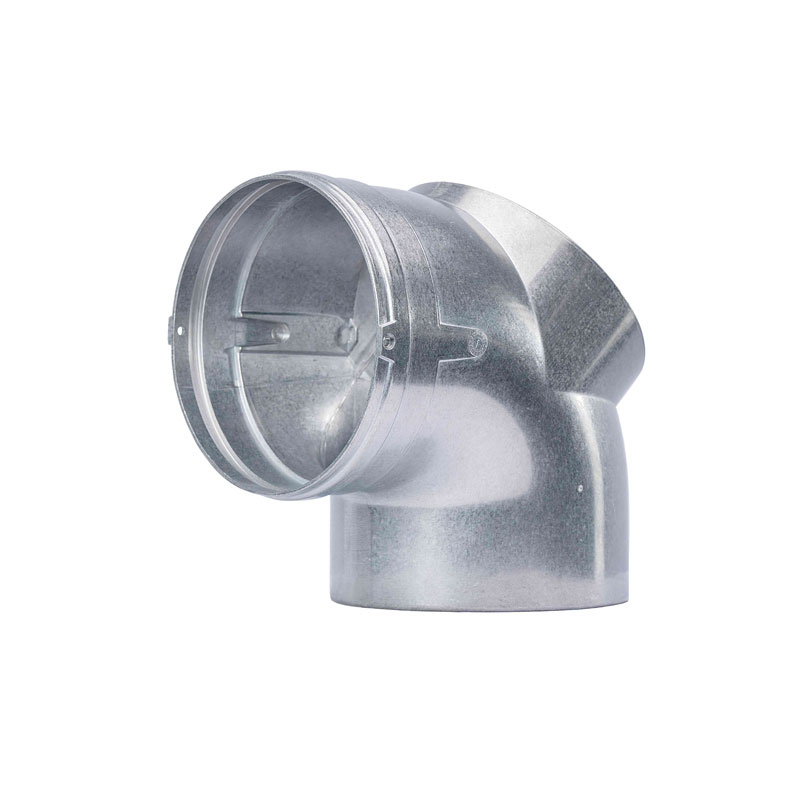

Tailored Designs: Exploring Variations in 3-Way Elbow Pipe Fittings for Diverse Fluid and Gas Applications

2024-01-18

Introduction:

In the dynamic landscape of fluid and gas handling, the adaptability of piping components is crucial. 3-Way elbow pipe fittings, also known as tees, are no exception. The design of these fittings can vary significantly to meet the specific demands of different fluid or gas applications. In this blog post, we'll delve into the variations in the design of 3-way elbow pipe fittings tailored for diverse applications.

1. Material Selection:

  The choice of materials for 3-way elbow fittings is influenced by the nature of the fluid or gas being transported. For corrosive substances, such as acids or chemicals, corrosion-resistant materials like stainless steel or PVC may be preferred. In applications with high temperatures or extreme conditions, materials with superior heat resistance and durability are chosen to ensure longevity and safety.

2. Pressure Ratings:

  Different fluid and gas applications operate at varying pressure levels. The design of 3-way elbow fittings takes into account the pressure ratings required for specific applications. Fittings designed for high-pressure applications may have reinforced structures and thicker walls to withstand the forces exerted by the fluid or gas.

3. Temperature Considerations:

  Temperature variations play a critical role in the design of 3-way elbow fittings. Fittings for applications involving extreme temperatures, such as those in industrial processes or HVAC systems, are designed with materials that can withstand thermal expansion and contraction without compromising structural integrity.

4. Specialized Coatings:

  Certain applications demand additional protection against external factors. 3-Way elbow fittings may be designed with specialized coatings or linings to resist corrosion, reduce friction, or prevent contamination of the transported fluid or gas. These coatings enhance the longevity of the fittings and maintain the quality of the conveyed substances.

5. Hygienic Designs for Food and Pharmaceutical Industries:

  In industries like food processing and pharmaceuticals, where hygiene is paramount, 3-way elbow fittings are designed with smooth surfaces and minimal crevices to prevent the accumulation of bacteria or contaminants. Materials used in these fittings comply with industry regulations to ensure the purity of the conveyed substances.

6. Aseptic Designs for Biotechnological Applications:

  Biotechnological applications often require aseptic conditions. 3-Way elbow fittings for such applications may feature designs that facilitate easy cleaning and sterilization. Smooth transitions between surfaces and the absence of dead spaces contribute to maintaining a sterile environment.

7. Quick-Disconnect Fittings:

  Some applications demand frequent disassembly for maintenance or cleaning. 3-Way elbow fittings with quick-disconnect features, such as clamp or snap-on connections, are designed to expedite the process of dismantling and reassembling the piping system.

Conclusion:

The variations in the design of 3-way elbow pipe fittings underscore the importance of tailoring these components to meet the specific requirements of different fluid or gas applications. Whether it's materials, pressure ratings, temperature considerations, coatings, hygienic designs, aseptic features, or quick-disconnect functionalities, the adaptability of 3-way elbow fittings ensures their versatility across a wide range of industries and applications. Understanding these variations allows engineers and professionals to make informed choices that contribute to the efficiency and reliability of piping systems in diverse sectors.
