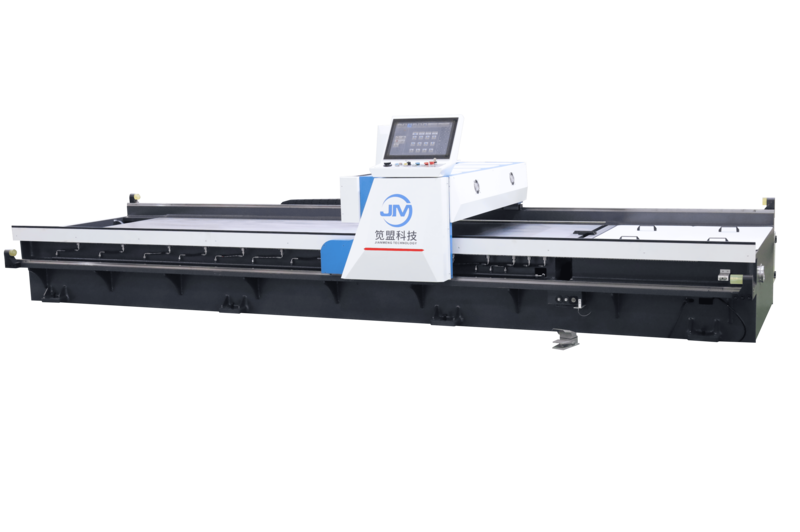

How to operate the Horizontal High Speed ​​V Grooving Machine correctly

Operating a Horizontal High-Speed V Grooving Machine correctly requires a combination of understanding the machine’s features, ensuring proper setup, and following safety protocols. Here's a step-by-step guide:

1. Preparation Before Operation

Read the Manual: Always read the user manual for specific instructions and safety guidelines.

Inspect the Machine:

Check the machine for any visible damage or wear.

Ensure all moving parts (such as the cutting tool and rollers) are well-lubricated.

Verify that the electrical system is functioning properly.

Ensure Proper Setup:

Install the required tool for the grooving process.

Make sure the workpiece is aligned correctly.

Adjust the tool holder and guide rails as per the machine's specifications.

Set the correct depth and cutting speed according to the material being processed.

2. Safety Precautions

Personal Protective Equipment (PPE): Always wear safety goggles, ear protection, and gloves.

Emergency Stop: Familiarize yourself with the location of the emergency stop button in case something goes wrong.

Lock Out/Tag Out: Ensure that the machine is de-energized before making any adjustments or handling tools.

3. Machine Setup

Positioning the Workpiece:

Load the workpiece onto the machine bed, ensuring it's securely fixed with clamps or a vacuum system to avoid movement during cutting.

Ensure the workpiece is level and aligned with the grooving axis.

Adjusting Parameters:

Set the cutting speed based on the material type and thickness.

Adjust the feed rate to match the machine’s capabilities and the material’s characteristics.

Set the correct groove depth. The machine's depth stop should be adjusted accordingly.

4. Starting the Machine

Powering Up: Turn on the machine and ensure all systems are in working order.

Test Run: If possible, perform a dry run with no material to check for alignment and ensure there are no issues.

Activate the Cutting Tool: Once everything is set, start the cutting process by engaging the tool.

5. During Operation

Monitor Cutting: Continuously observe the operation to ensure that the groove is being made properly. If the machine makes unusual noises or the cutting becomes irregular, stop immediately.

Speed Adjustments: You may need to adjust the cutting speed based on the results you’re seeing, especially when changing materials.

6. Post-Operation

Shut Down the Machine: Once the grooving process is complete, power down the machine.

Clean the Machine: Remove any material debris from the machine’s bed, tool, and other parts.

Inspect the Grooves: Ensure that the grooves meet the required specifications (depth, width, and consistency).

Perform Maintenance: After every operation, check the machine for any wear or damage and lubricate the moving parts as necessary.

7. Regular Maintenance

Daily Checks: Perform daily inspections to check for oil levels, tool wear, and cleanliness.

Tool Replacement: Change the tools (such as the blade) when necessary to maintain the quality of the grooves.

Periodic Calibration: Periodically recalibrate the machine to ensure consistent accuracy over time.

By following these steps, you can ensure that the Horizontal High-Speed V Grooving Machine operates at its best, providing precise and clean grooves while also maintaining safety and machine longevity.
