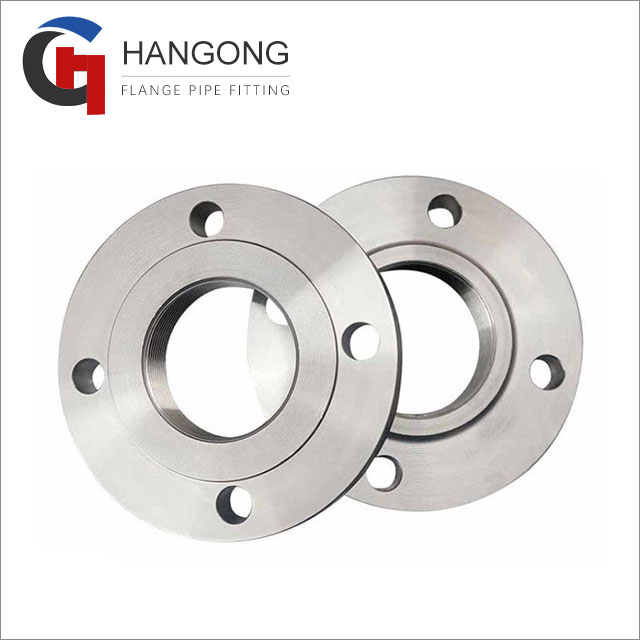

Crafting Connections: The Manufacturing Process and Materials Behind Threaded Flanges

2024-01-06

Introduction:

Threaded flanges, essential components in piping systems, boast a unique design that simplifies installation and maintenance. Understanding the manufacturing process and the materials involved in crafting threaded flanges sheds light on their durability and suitability for various applications. In this blog post, we'll explore how threaded flanges are manufactured and delve into the common materials used in their production.

The Manufacturing Process of Threaded Flanges:

1. Material Selection:

  - The manufacturing journey begins with the selection of suitable materials. Common choices include carbon steel, stainless steel, alloy steel, and other materials depending on the specific requirements of the application.

2. Cutting and Shaping:

  - The chosen material undergoes precision cutting to achieve the required dimensions for the threaded flange.

  - Advanced machinery, such as laser cutting or plasma cutting equipment, may be employed to ensure accuracy.

3. Threading:

  - The threaded section of the flange is created through a threading process. This can be achieved using various methods, including:

    - Die Threading: This process involves cutting threads into the material using a die.

    - Thread Rolling: Thread rolling compresses the material to form threads, enhancing their strength and durability.

4. Forging or Casting:

  - Depending on the material and the desired characteristics of the threaded flange, it may undergo forging or casting processes.

  - Forging: Involves shaping the material through the application of pressure and heat, resulting in improved strength and grain structure.

  - Casting: Utilizes molten metal poured into a mold to create the desired shape. Casting is suitable for complex geometries.

5. Heat Treatment:

  - Heat treatment is often employed to enhance the mechanical properties of the threaded flange, optimizing factors such as hardness and resilience.

6. Surface Finishing:

  - The threaded flange undergoes surface finishing processes to improve its appearance and corrosion resistance. This may include polishing, pickling, or coating with protective layers.

7. Quality Control:

  - Rigorous quality control measures are implemented to ensure that each threaded flange meets industry standards and specifications.

  - Inspections may involve dimensional checks, thread quality assessments, and material composition analysis.

Common Materials Used in Threaded Flanges:

1. Carbon Steel:

  - Carbon steel threaded flanges are widely used due to their affordability, strength, and suitability for various applications.

  - Grades such as ASTM A105 are commonly employed for carbon steel threaded flanges.

2. Stainless Steel:

  - Stainless steel threaded flanges offer excellent corrosion resistance, making them ideal for applications where exposure to harsh environments is a concern.

  - Common stainless steel grades include 304, 316, and 316L.

3. Alloy Steel:

  - Alloy steel threaded flanges are chosen for their enhanced strength and durability, especially in high-temperature and high-pressure applications.

  - Grades like ASTM A182 F11, F22, or F91 are common choices for alloy steel threaded flanges.

4. Brass:

  - Brass threaded flanges are utilized in applications where corrosion resistance and aesthetics are priorities.

  - Brass is suitable for certain low-pressure and non-critical environments.

Conclusion:

The manufacturing process of threaded flanges involves a series of precise steps, from material selection to threading, shaping, heat treatment, and quality control. The choice of material is a critical aspect, and different materials are selected based on factors such as strength, corrosion resistance, and environmental considerations. Whether for low-pressure systems or high-temperature applications, threaded flanges demonstrate their versatility and reliability, making them integral components in the intricate web of piping systems across various industries. Engineers and designers, armed with knowledge about the manufacturing process and material options, can make informed choices to ensure the optimal performance of threaded flanges in diverse applications.
