Connecting with Precision: Tools and Techniques for Installing and Removing Wires from the WAGO 221 Series Connector

2024-01-24

Introduction:

In the intricate world of electrical connections, the precision of installation and the ease of removal are critical factors. The WAGO 221 Series connector, designed for efficiency and reliability, offers a streamlined approach to wire installation and removal. This blog will explore the recommended tools and methods for installing and removing wires from the WAGO 221 Series connector, shedding light on the user-friendly features that make it a preferred choice among professionals.

1. Tool-Free Installation:

  One of the standout features of the WAGO 221 Series connector is its tool-free installation capability. Professionals can insert wires into the connector without the need for specialized tools. This not only saves time but also simplifies the installation process, making it accessible even for those without extensive training.

2. Lever Actuation:

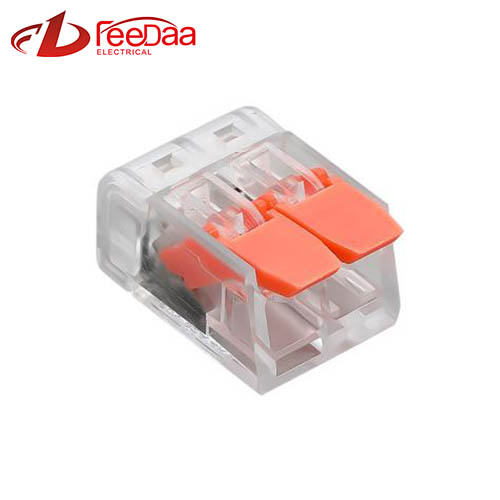

  The WAGO 221 Series connectors, including the PCT-412 model, often feature a lever that serves as the key component for wire installation and removal. The lever acts as a user-friendly mechanism that can be easily manipulated to open and close the connector, securing or releasing the wires.

3. Simple Lever Operation:

  To install a wire, the user opens the lever, inserts the wire into the designated slot, and closes the lever securely. The simplicity of this operation ensures a quick and efficient installation process. For removal, the lever is opened to release the wire, allowing for easy disconnection.

4. Built-In Wire Release Mechanism:

  The WAGO 221 Series connectors are designed with a built-in wire release mechanism. This feature simplifies the removal process by allowing users to release the wire with minimal effort, ensuring a smooth and hassle-free disconnection.

5. User-Friendly Design:

  The design of the WAGO 221 Series connector is inherently user-friendly. The intuitive lever operation and the clear markings on the connector guide users through the installation and removal steps, reducing the likelihood of errors during the process.

6. Compatibility with Standard Tools:

  While the WAGO 221 Series promotes tool-free installation, it is also compatible with standard tools if needed. This flexibility allows professionals to choose the method that best suits their preferences or specific project requirements.

7. Visual Inspection:

  The transparent housing, present in some models of the WAGO 221 Series, allows for visual inspection of the wire connection. This feature aids in verifying that the wire is correctly inserted and engaged, enhancing the overall reliability of the installation.

8. Comprehensive User Manuals:

  WAGO provides comprehensive user manuals and documentation for the WAGO 221 Series connectors. These documents offer step-by-step guidance on proper installation and removal procedures, ensuring that users have access to detailed instructions.

Conclusion:

The WAGO 221 Series connector's approach to wire installation and removal reflects a commitment to user-friendly design and efficient functionality. Whether through tool-free installation, lever actuation, or built-in release mechanisms, this connector prioritizes simplicity and precision. As professionals in the electrical industry seek solutions that optimize their workflow, the WAGO 221 Series stands out as a reliable and user-friendly choice for connecting wires with precision and ease.
